Rinstrum X320 Indicator + BTM-V1 Package

Designed for systems with existing Loadcells in Harsh Conditions.

The X320 Package includes the BTM-V1 WiseWeigh Module and the X320 Weight Indicator to be applied to an existing Feed-Out Trailer, Trail Feeder, Chaser Bin, Air Seeder, etc. on Loadcells.  Ready-to-install smart weighing solution, unbox it, mount it, connect it... see weight displayed your phone before the day is out.

What It Does

Once fitted, the BTM-V1 connects your Rinstrum indicator to the free WiseWeigh iOS and Android App available on the appropriate App Store your device.  Provides a Visual Aid to assist with your existing Actuator control. Setpoints can be set to change your Smartphone display from GREEN, to ORANGE to RED just like a traffic light.  You no longer need to watch Weight readings flashing past; just watch for the colour changes out the corner of your eye all from your phone or tablet in the cab.

Compatible Equipment

• Existing Loadcell Setup
  • Trail Feeders
  • Feed-Out Trailers
  • Chaser Bins
  • Air Seeders

Key Features

• Rinstrum X320 Weight Indicator
• Real-time weight viewing via free iOS & Android app, see your weights on your screen.
• Supports 3 simultaneous connections
• 50m LOS Range

• Built for Australian agricultural conditions
• Simple installation — no specialist technician required
• New APP Upgrade Audible tones have been added.
  • GREEN Band - No Tone
  • ORANGE Band - Beeping Tone
  • RED Band - Solid Tone
  • Selectable On / Off in the Setpoint Tab

In the Box

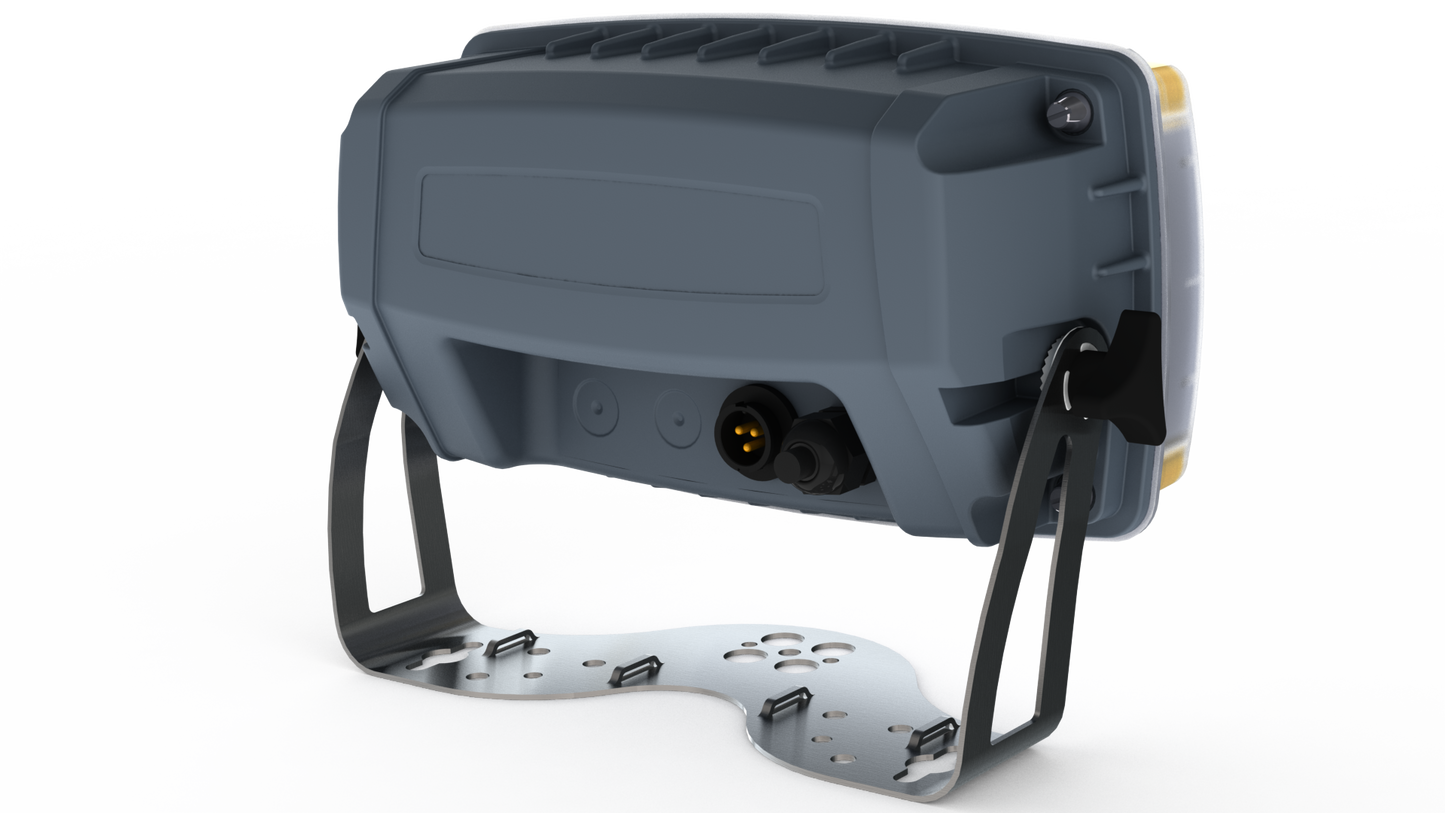

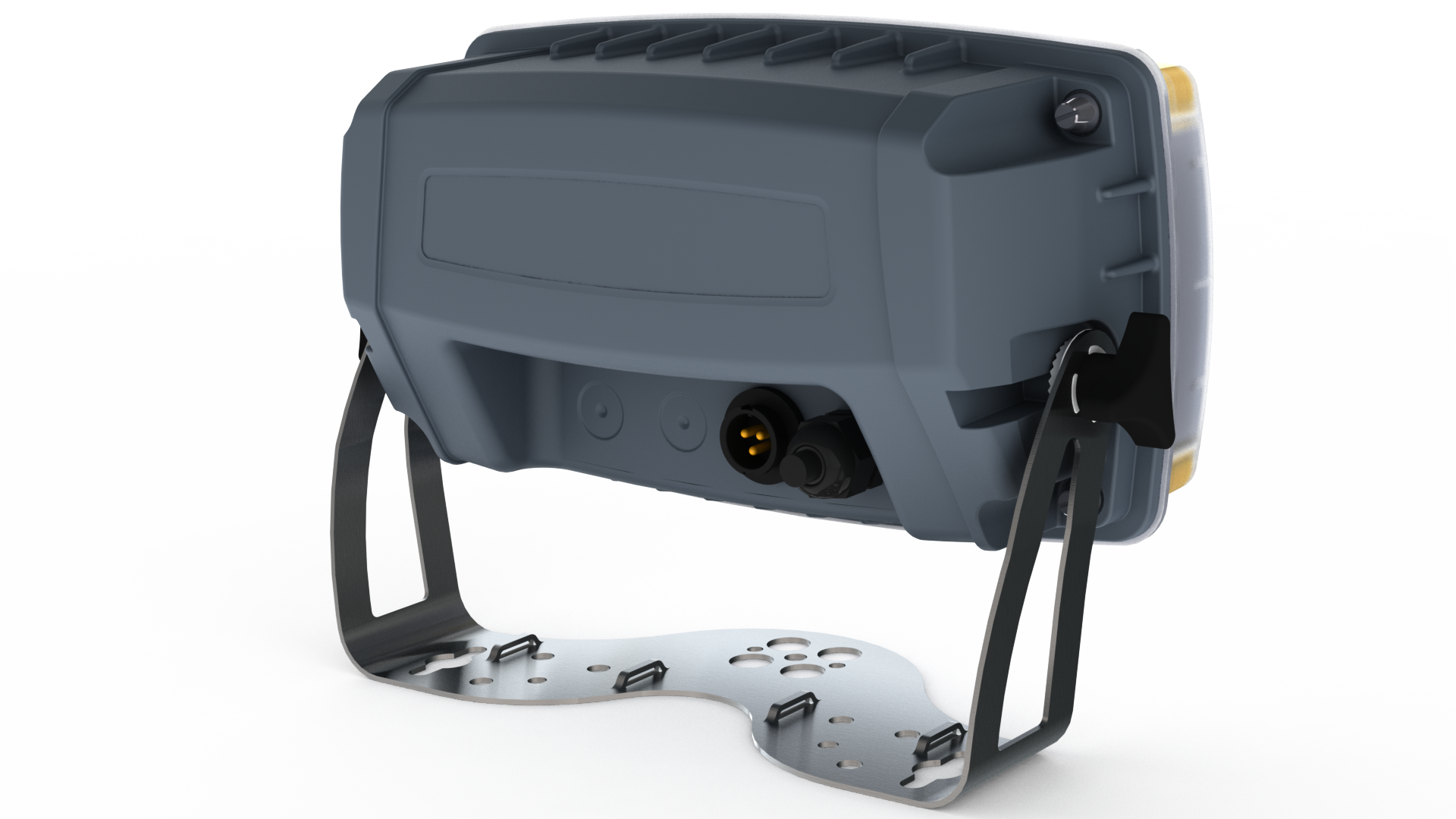

• Rinstrum X320 Weight Indicator - IP69K (1400psi @ 80 degrees)
  • Mounted BTM-V1 Module
  • Rear housing and stainless-steel mounting bracket
  • Wiring harness and connectors
• Installation guide
• Access to free WiseWeigh iOS & Android app

NMI Trade Use

• Not approved for NMI Trade Use.  The App will detect if the Weight Indicator is set to Trade Mode and show an error if detected.

Already running a Rinstrum indicator? This is the most cost-effective way to bring your operation into the digital age.
